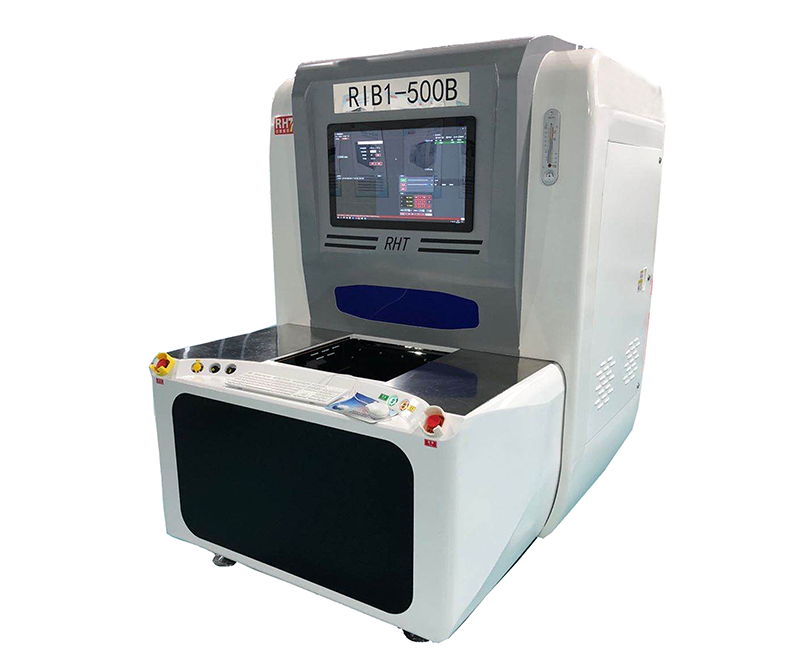

2D&3D High Precision Measuring Equipment
shape size(mm)：2050L*1500W*2000H
Test speed/piece: about 15min(1000 sets of data)
Input/Out Method:Semi-automatic manual operation or Specialized customization
Test contents: 2D: length, width, position, span, aperture, spacing, etc
3D: step height difference, inside and outside hole height, retaining point, retaining wall, convex hull height, etc
Measurement accuracy：2D：±5um
3D:±3um
Test speed/piece: about 15min(1000 sets of data)
Input/Out Method:Semi-automatic manual operation or Specialized customization
Test contents: 2D: length, width, position, span, aperture, spacing, etc
3D: step height difference, inside and outside hole height, retaining point, retaining wall, convex hull height, etc
Measurement accuracy：2D：±5um
3D:±3um
